Alba MC 250 Material Hoist

The ALBA MC 250 model is ideal for faster scaffold erection and dismantling, as well as safe and productive material lifting for the contractor. It is compatible with all brands of tube and coupler, system, and frame scaffolding on the market and can be equipped with different interchangeable carriers depending on the type of loads to be lifted or the requirements of the job. Bee Access will custom design project-specific carriers for all of your job needs. We fully support the ALBA product line with ample stock of hoists, accessories, and spare parts as well as fast technical, expert installation assistance and product training.

• 30-40% labor savings while increasing productivity & safety for your scaffold erection crew
• Category-leading 550 lb load capacity
• Rack and pinion drive is easier to install, more efficient, and trouble-free compared to wire rope systems
• Specially designed to be installed inside a tubular scaffold bay or on the outside with the use of a pivoting carrier
• No Loose Parts: Integrated mast anchor brackets and toggle bolts for fast and easy installation
• Industrial grade construction for reliability and durability

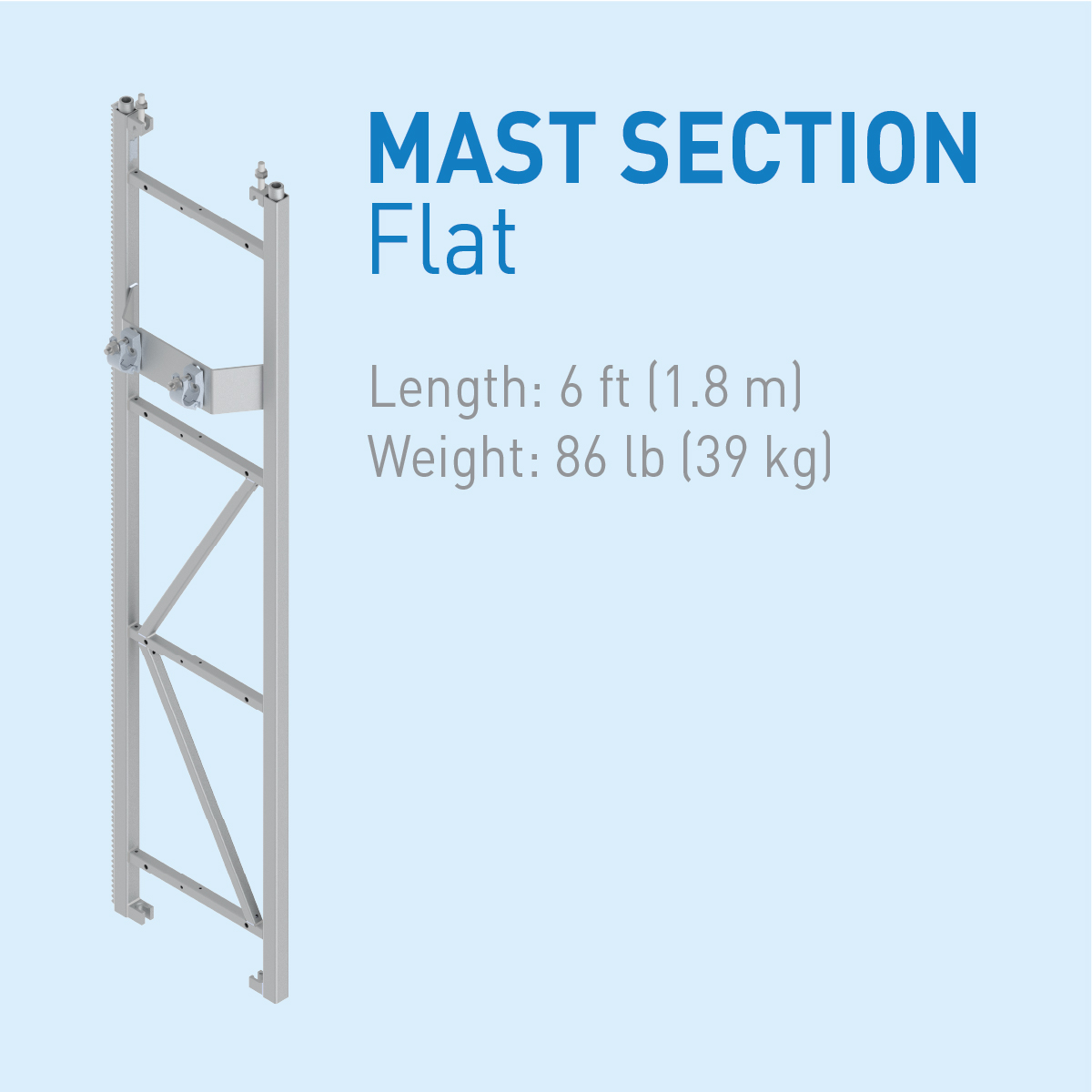

• Galvanize steel mast sections are durable and stand up to rough handling
• Soft start and stop is gentle on materials
• Optional: Wireless Remote Control / Battery Power Pack / GPS Receiver & Telematics
• Industry-leading safety features, such as: Upper and lower limit switches. Overspeed safety device. Controlled descent device.

Specifications

• Max. load capacity: 550 lb (250 kg)
• Max. speed: 65 ft/min (10 m/min)
• Max. height: 300 ft (60 m) (inquire about greater heights)
• Motor power: 1.8 kW (60 Hz)
• Noise emission value: <70 dB
• Regulations Reference: ANSI A10.5

Electrical Data – 60Hz

• Input Power Connection: 208V single phase / Optional Battery Power
• Nominal Current: 10A
• Supply Power: 5 kVA
