Alba PT 450 Transport Platform – Rack & Pinion

Alba PT 450 Transport Platform – Rack & Pinion

Part Number: PT 450

The PT 450 model is the best solution for transportation of personnel and/or material on medium height buildings. With a load capacity of 1000 lb (454 kg) and a small foot print, this transport platform is ideal for lifting men and/or materials in tight spaces such as elevator shafts. This, along with a budget friendly price, makes the hoist highly productive and profitable.

  • Overspeed parachute with auto-recovery system
  • Galvanized steel construction with a non-slip cage floor is durable and stands up to rough handling
  • Hoist controls with LED display
  • Soft start and stop is gentle on materials and personnel
  • Industry-leading safety features, such as: Upper and lower limit switches, Overspeed safety device, Controlled descent device­, Overload safety stop, Proximity safety switch

Max. load capacity: 1000 lb (450 kg)
Max. speed: 60 ft/min (18 m/min)
Max. height: 400 ft (120 m) (inquire about greater heights)
Cabin dimensions: 49 in x 33 in x 80 in (124 cm x 84 cm x 202 cm)
Noise emission value: <70 dB

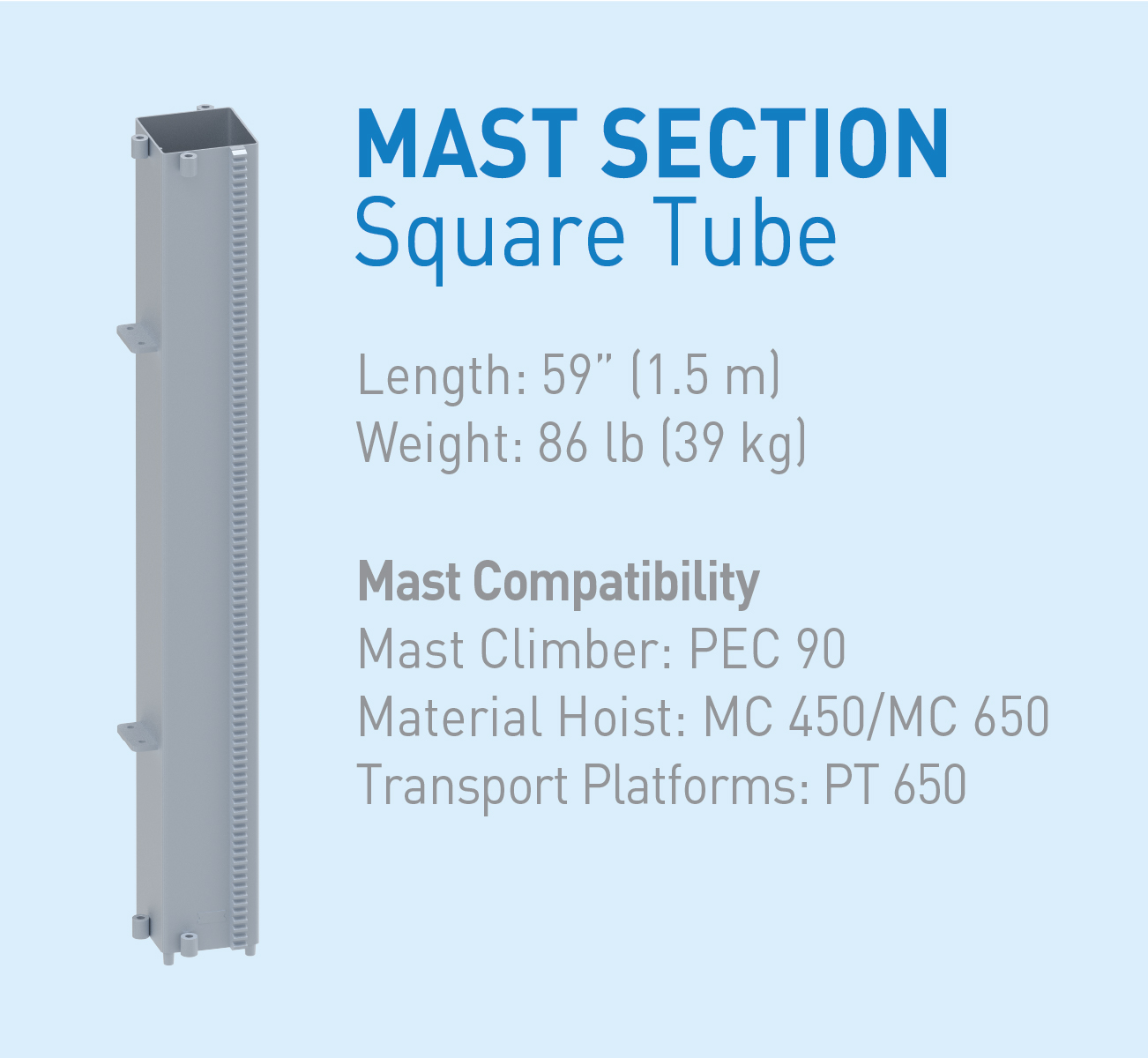

Mast section: Square Tube (Length: 59” (1.5 m)    Weight: 86 lb (39 kg))
Mast section compatibility: Mast Climber: PEC 90  |  Material Hoist: MC 450
