Alba PT 1000F Transport Platform – Rack & Pinion

Alba PT 1000F Transport Platform – Rack & Pinion

Part Number: PT 1000F

The PT 1000F model is designed specifically for the transportation of drywall. The larger cabin footprint of the PT 1000F is ideal for drywall transportation at height. With a load capacity of 2200 lb (1000 kg) this transport platform is ideal for lifting men and/or materials on medium to large jobs. The footprint and single mast set up of this unit is still small enough for limited space jobs. This, along with a budget friendly price, makes the hoist highly productive and profitable.

  • Overspeed parachute with auto-recovery system
  • Galvanized steel construction with a non-slip cage floor is durable and stands up to rough handling
  • Hoist controls with LED display
  • Soft start and stop is gentle on materials and personnel
  • Industry-leading safety features, such as: Upper and lower limit switches, Overspeed safety device, Controlled descent device­, Overload safety stop, Proximity safety switch

Max. load capacity: 2200 lb (1000 kg)
Max. speed: 66 ft/min (20 m/min)
Max. height: 400 ft (120 m) (inquire about greater heights)
Cabin dimensions: 99 in x 55 in x 82 in (251 cm x 140 cm x 208 cm)
Noise emission value: <70 dB

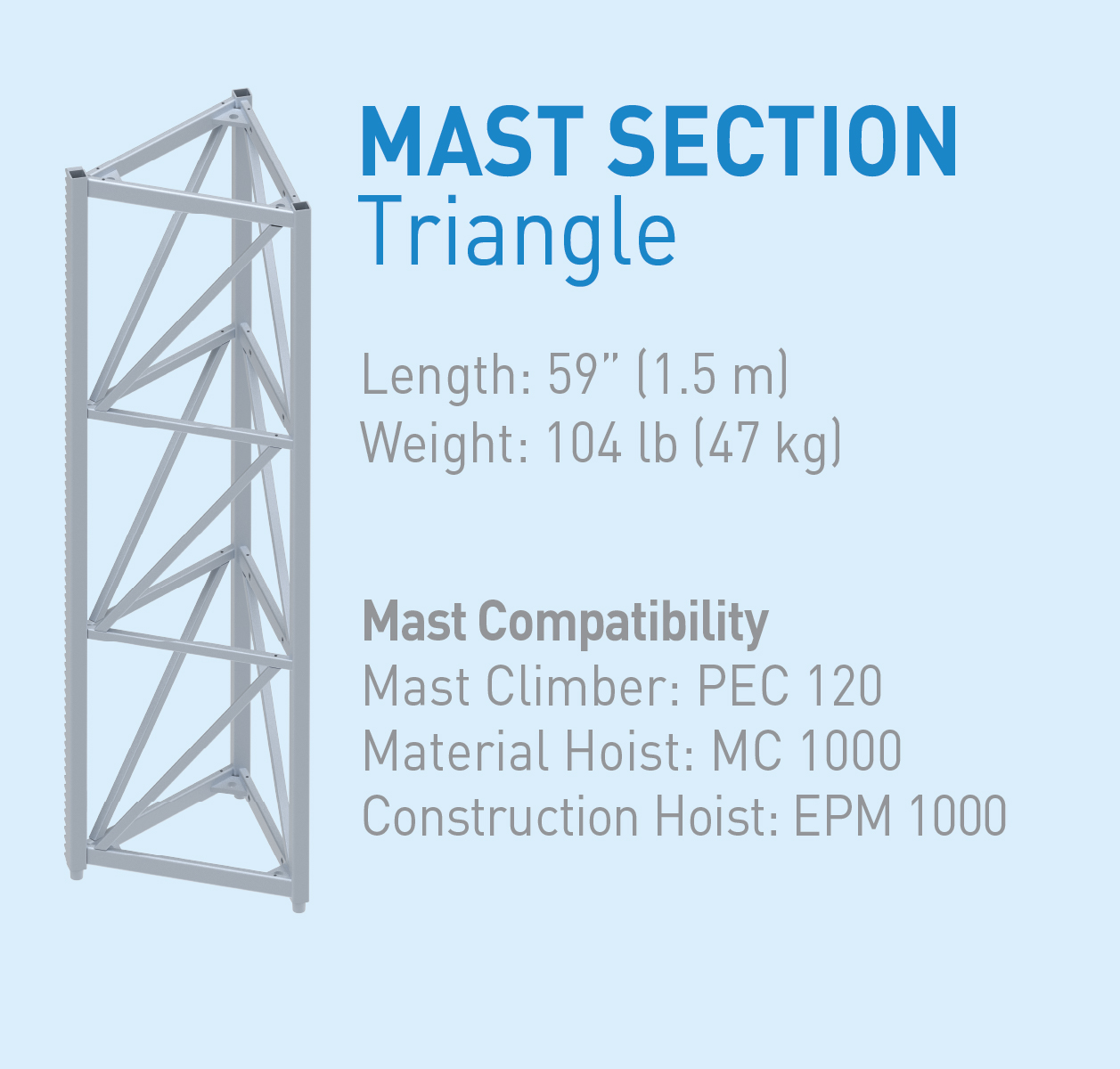

Mast section: Triangle (Length: 59” (1.5 m)    Weight: 104 lb (47 kg))
Mast section compatibility: Mast Climber: PEC 120  |  Material Hoist: MC 1000  |  Construction Hoist: EPM 1000
