Alba PEC 90 Mast Climber – Rack & Pinion

Alba PEC 90 Mast Climber – Rack & Pinion

Part Number: PEC 90

The PEC 90 Mast Climber is designed with the ease of transport and mobility in mind. Mast climbers present many benefits in terms of safety by helping facilitate work in adverse weather conditions. Installation and disassembly time are reduced by up to 90% and work time by up to 40%, compared to other alternatives.
The PEC 90 platform can reach heights up to 300 ft (91 m) using the Alba square tube mast. The square tube mast is also compatible with other ALBA hoists, reducing stock and investment for customers. Single and double mast set ups allow for multiple configurations and platform lengths.

  • Galvanized steel construction with a non-slip cage floor is durable and stands up to rough handling

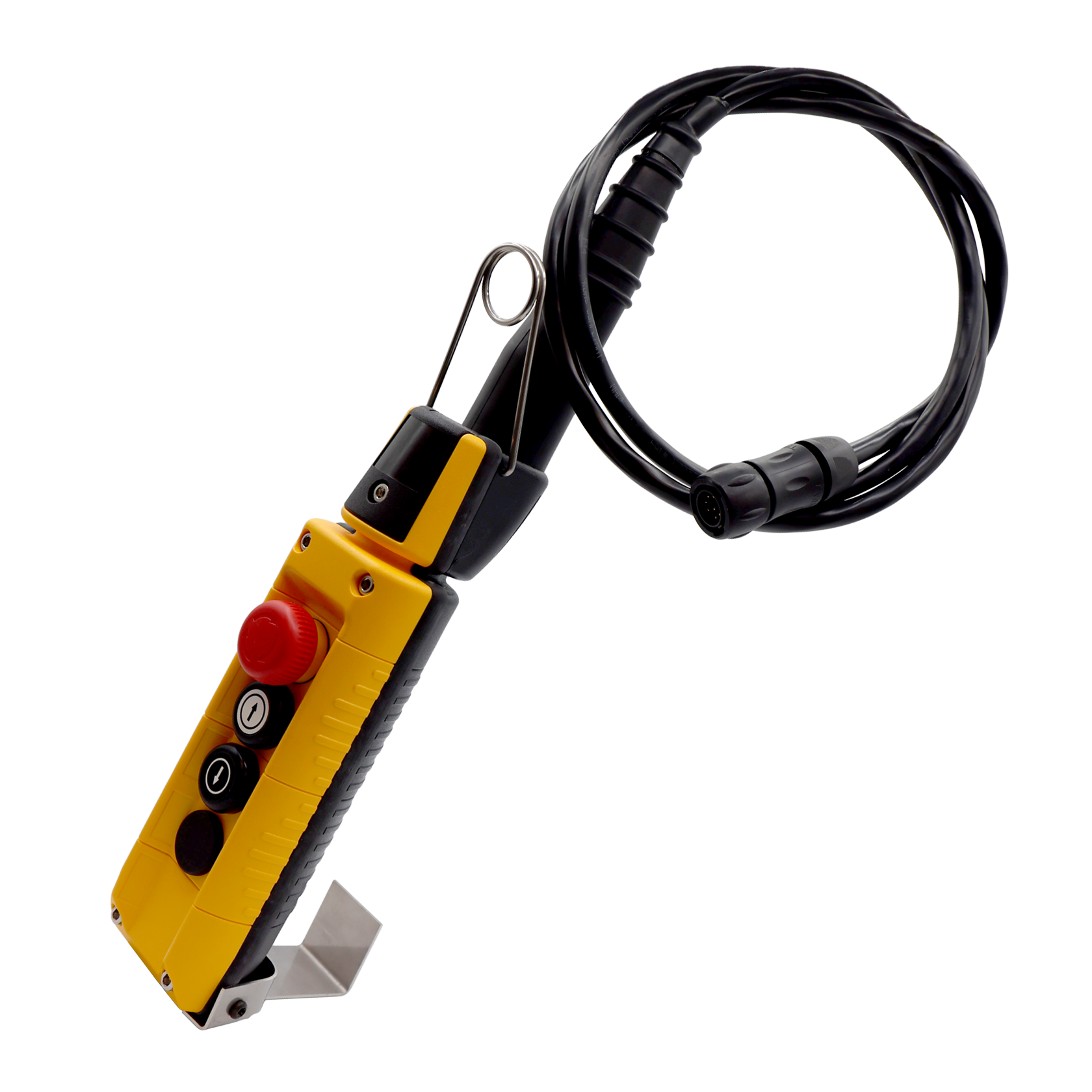

  • Hoist controls with LED display
  • Soft start and stop is gentle on materials and personnel
  • Industry-leading safety features, such as: Upper and lower limit switches, Safety end-track limit switch, Emergency controlled descent, Mast presence detector, Automatic leveling system

Max. load capacity: 4625 lb (2100 kg) with twin masts
Max. speed: 28 ft/min (8.5 m/min)
Max. height: 300 ft (91 m) (inquire about greater heights)
Max. platform length: 74’ 3” (22.5 m) with twin masts
Motor power: 2 x 0.90 kW (60 Hz)
Mast section: Square Tube (Length: 59” (1.5 m)    Weight: 86 lb (39 kg)
Mast section compatibility: Material Hoist: MC 450  |  Transport Platform: PT 450
