Bee Access

SureSplice

920183-S
inquire
Product information

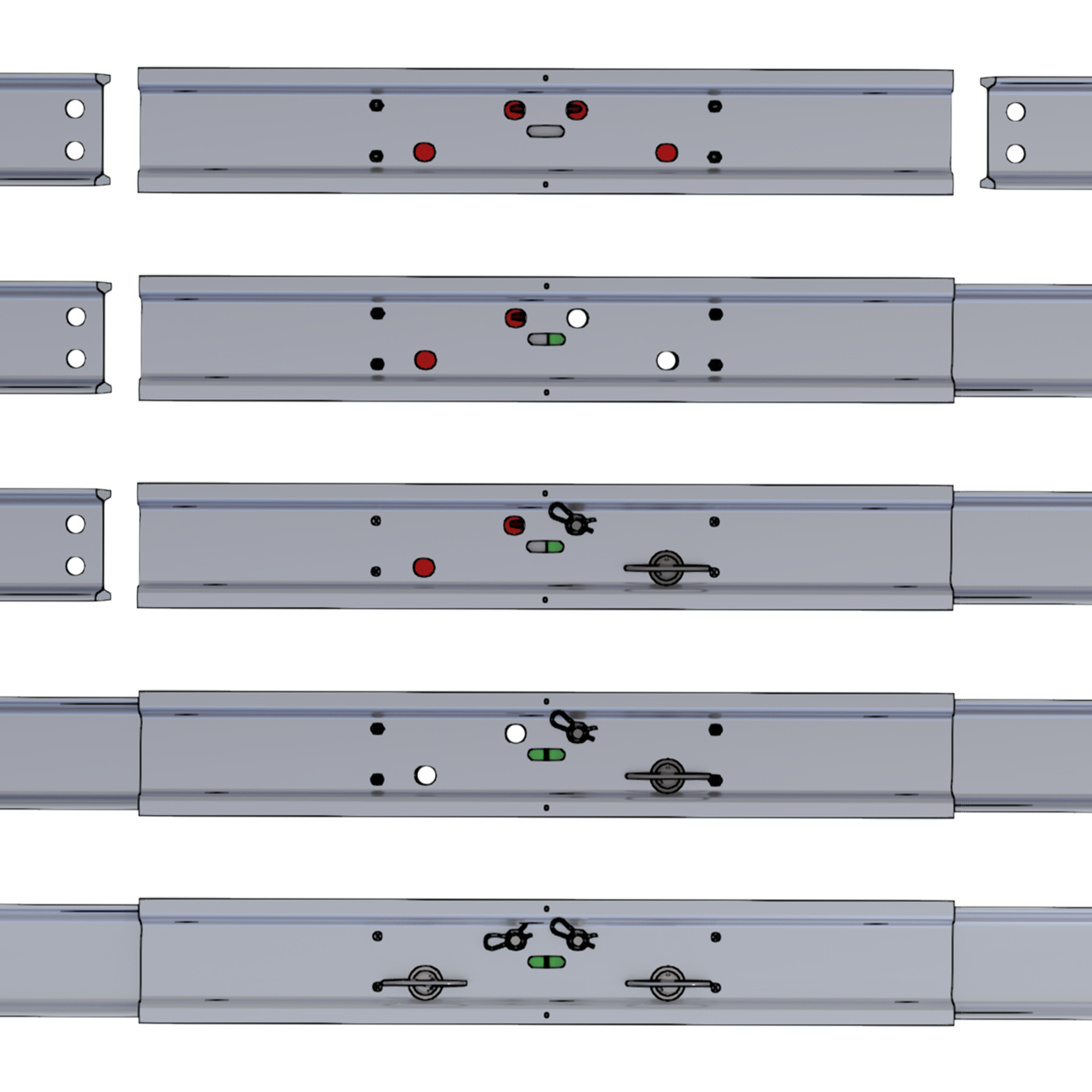

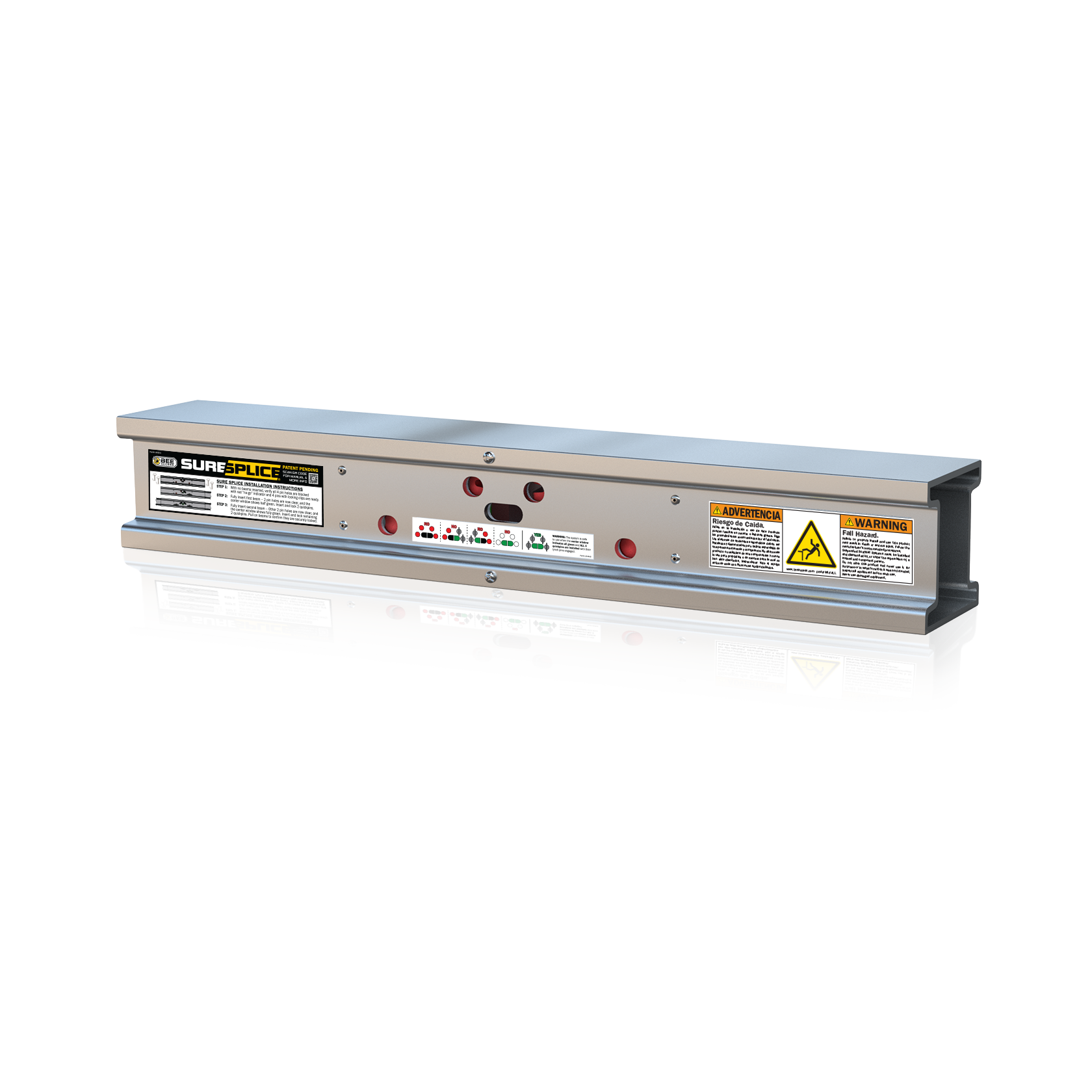

SureSplice® sets a new standard in safe, tool-free beam connections for suspended access outrigger beams. Designed specifically for splicing 5×5 H-beams, SureSplice combines familiar Quickpin locking with intuitive visual indicators, giving you clear and positive confirmation that the splice is fully engaged and secure. When the beams are not fully inserted, the mounting holes for the Quickpins are blocked. When the beams are fully inserted into the SureSplice, the integrated mechanical safety feature will unblock the holes so you can install the Quickpins securely, therefore eliminating potential human error every single time. Installation is quick and easy, with no tools required. Patent Pending



Specifications

  • Dimensions: 36″ x 6.18” x 5.56” (LxWxH)
  • Weight: 24 lbs
  • Construction: Aluminum tube with aluminum and stainless steel components
  • Compatibility: All 5×5 outrigger beam systems
