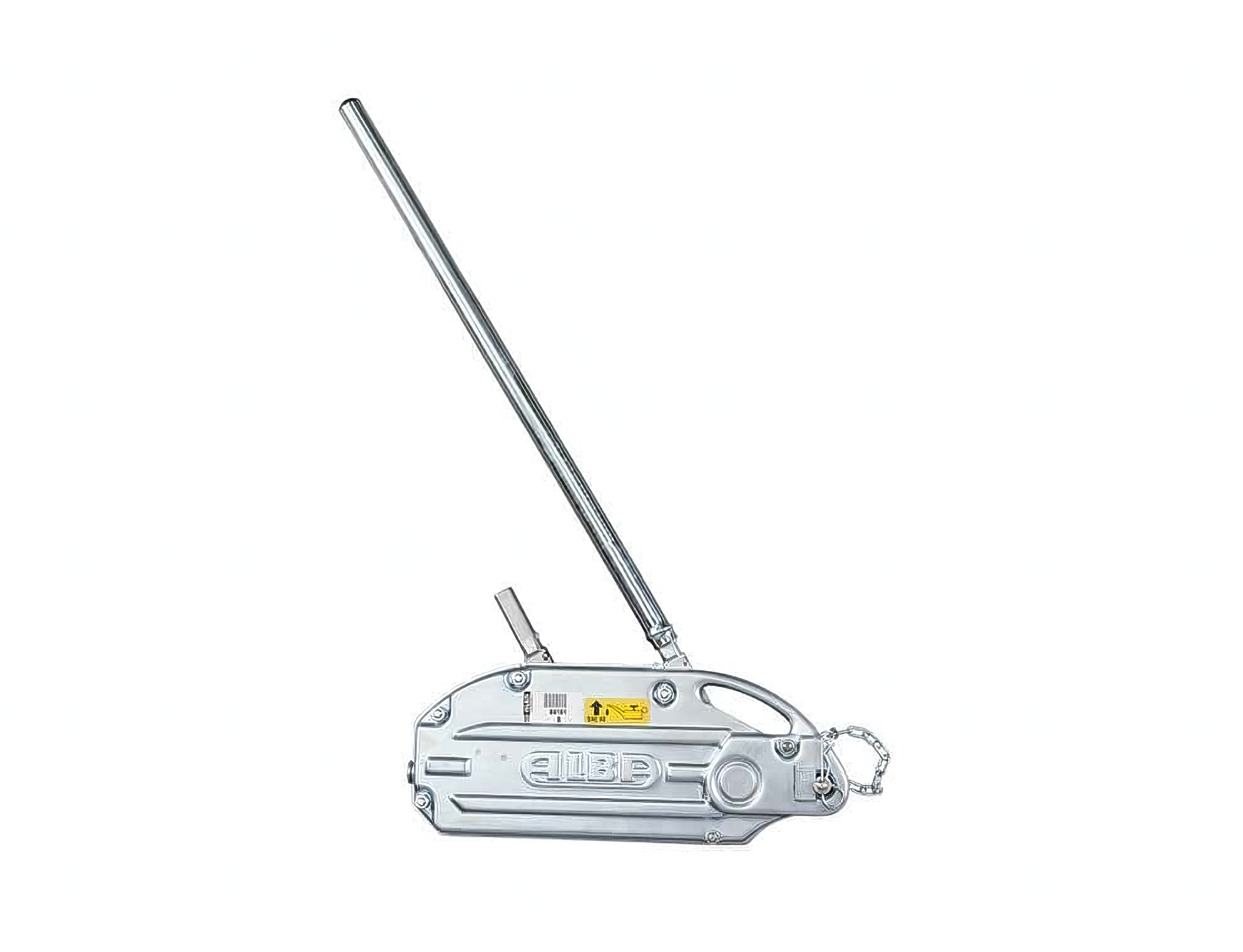

ALBA Grip Winch Model 8-A

The Alba Grip Winch line is strong, compact and lightweight, perfect for lifting and tensioning of heavy loads up to 1750 lb. These heavy-duty winches are made from reinforced stamped steel with a double galvanized layer of protection. Built-in handles make it easy to transport around the job site. Activating levers are situated in line with the wire rope to ensure stability and improve the transmission of power. All winches are tested at the Factory, carrying out forward and backward runs with 125% of the nominal load. All wire ropes are tested, with their loop and hook, at 200% of the nominal load. The minimum safety factor of the winch is 5, and the minimum safety factor of the wire rope is 6.

• Applications: Construction – Public works, Mines and quarries – Electricity and Communications – Shipyards, Navigation – Transport, Railways – Firemen, Garages, Agriculture, Forestry – Chemical and Petrol Industry – Armed Forces – Etc.
• No aluminum components, suitable for use in mines
• High resistant alloyed steel loop hook (with no aging) with safety lock
• The Optional Safety Device can be fitted to any model as well as to any other similar winch on the market. It works on the winches cable, or on the auxiliary, preventing the unit from slipping or breaking.

Specifications

• Nominal Capacity: 1750 lb (800 kg)
• Wire rope advance per activated cycle: 2.13 in (54 mm)
• Net Weight without Cable: 15 lb (7 kg)
• Wire Rope Size: 5/16 in (8.3 mm)
