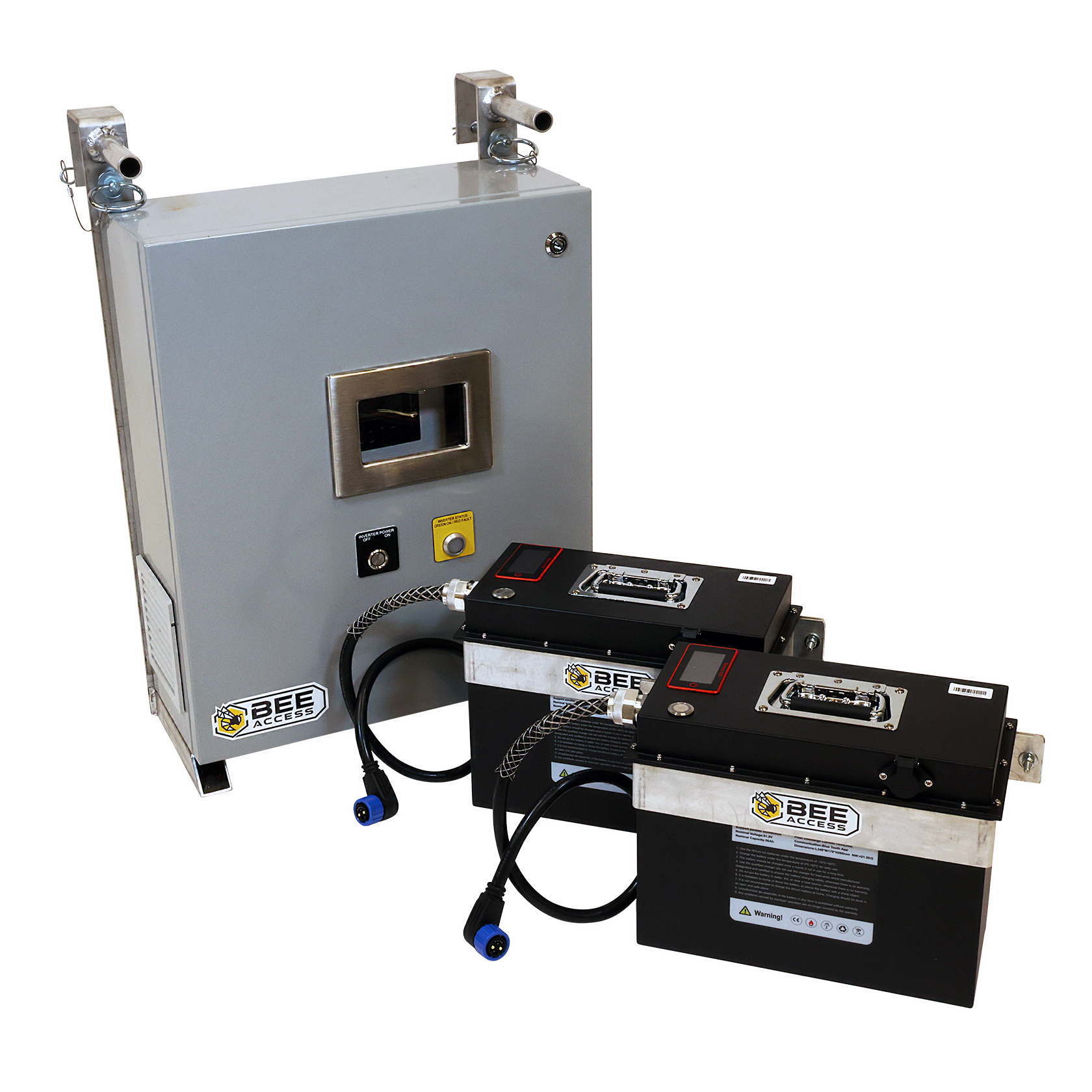

Battery Inverter Kit

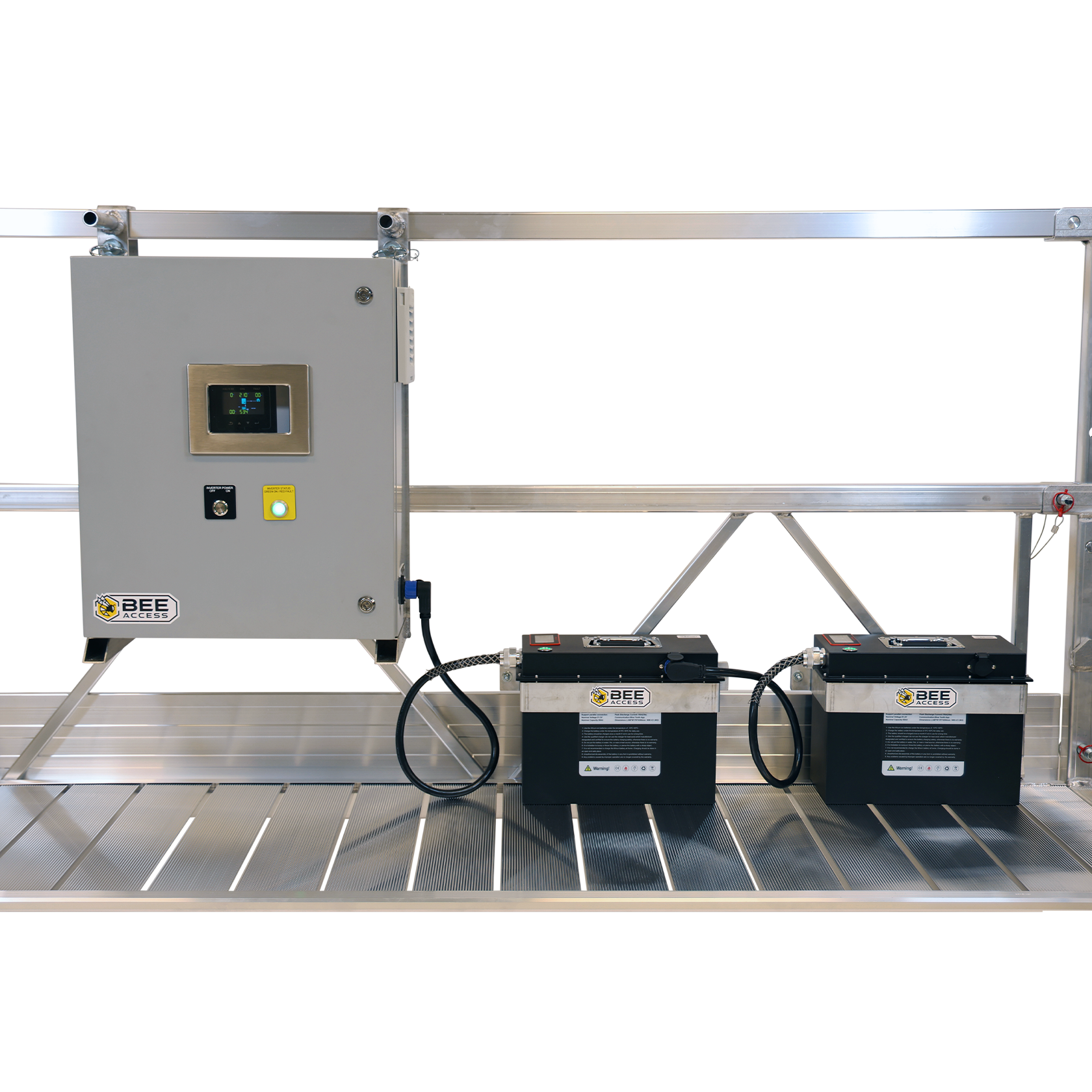

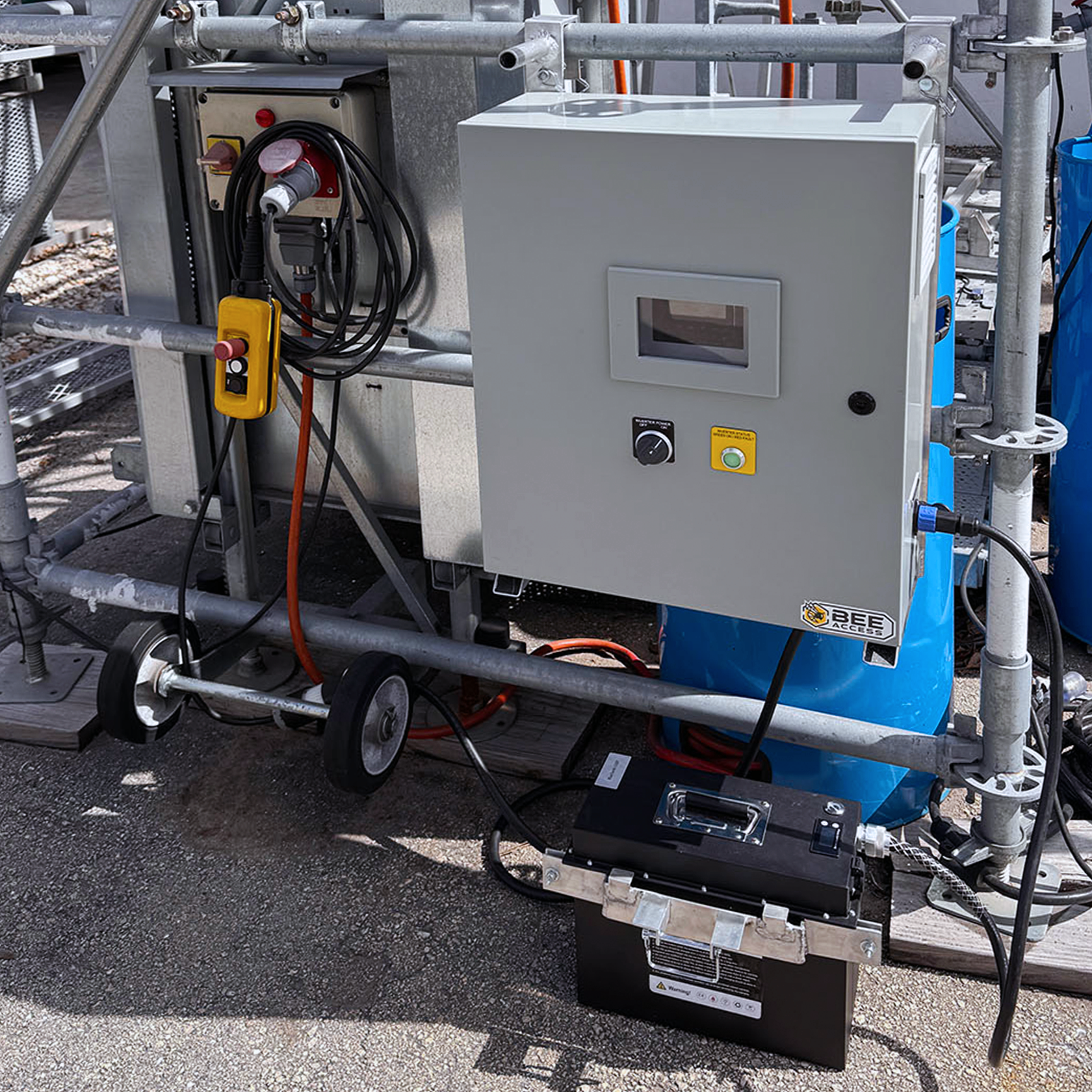

The Bee Access Battery Inverter Kit is a fully portable power solution designed to deliver reliable single-phase 210-220V 20A power when jobsite supply power is limited or unavailable. Engineered for maximum versatility, it works with all single-phase 208-220V hoists up to 1.5 kW, including the ALBA MC 250 material hoist. With a continuous runtime of up to 3 hours on a single battery and double that with an additional parallel connected battery, the need for power cables or noisy generators is eliminated.

The inverter features built-in indicator lights for normal operation, low battery, and system faults, along with a protective fuse to safeguard the system. The on-panel display provides live updates on charge level, voltage, and amperage. The batteries are easily charged through the built-in 220V fast charger in the inverter or with the 110V charger.

Specifications

• Dimensions (LxWxH):

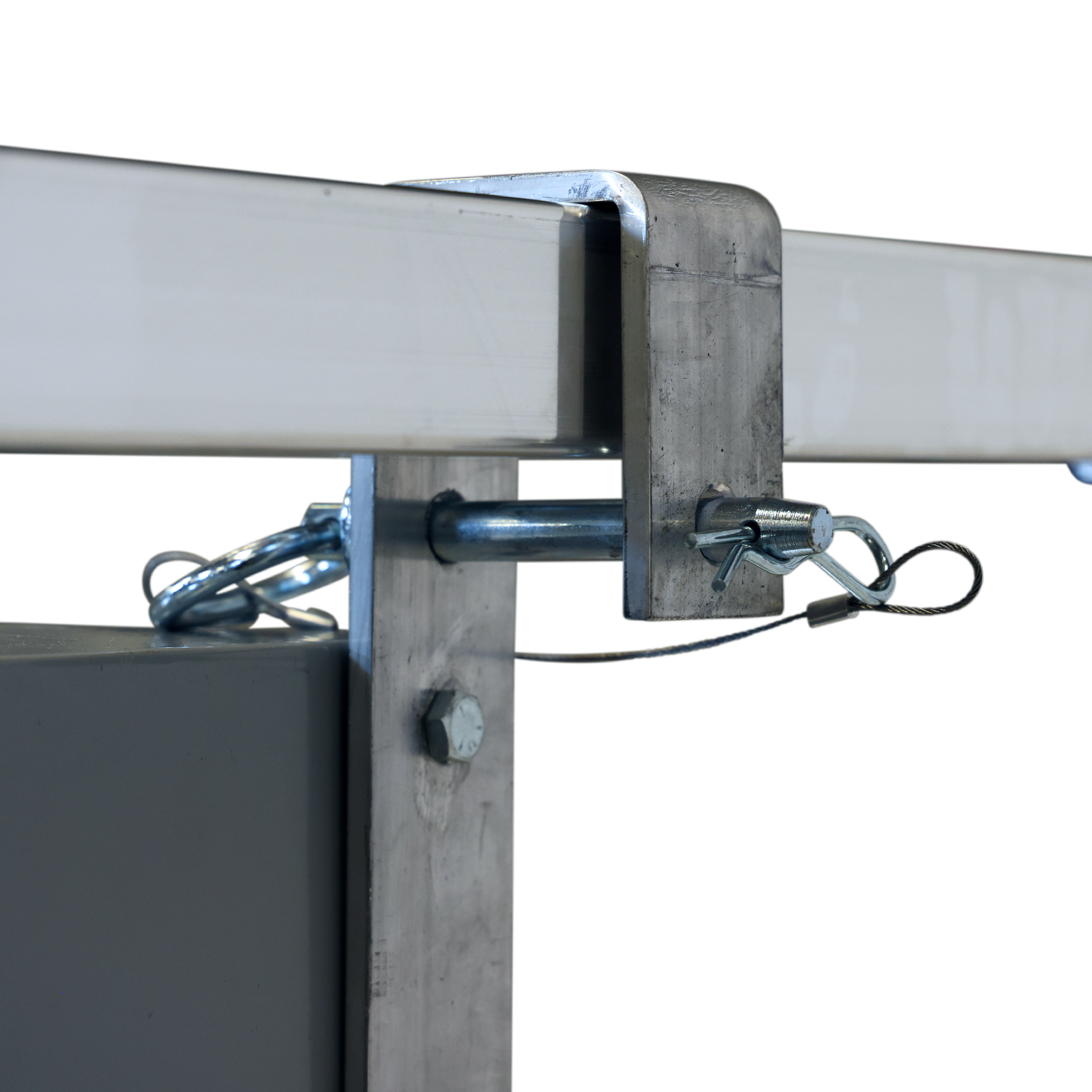

  Inverter & Bracket: 21.5″ x 9″ x 29.5″

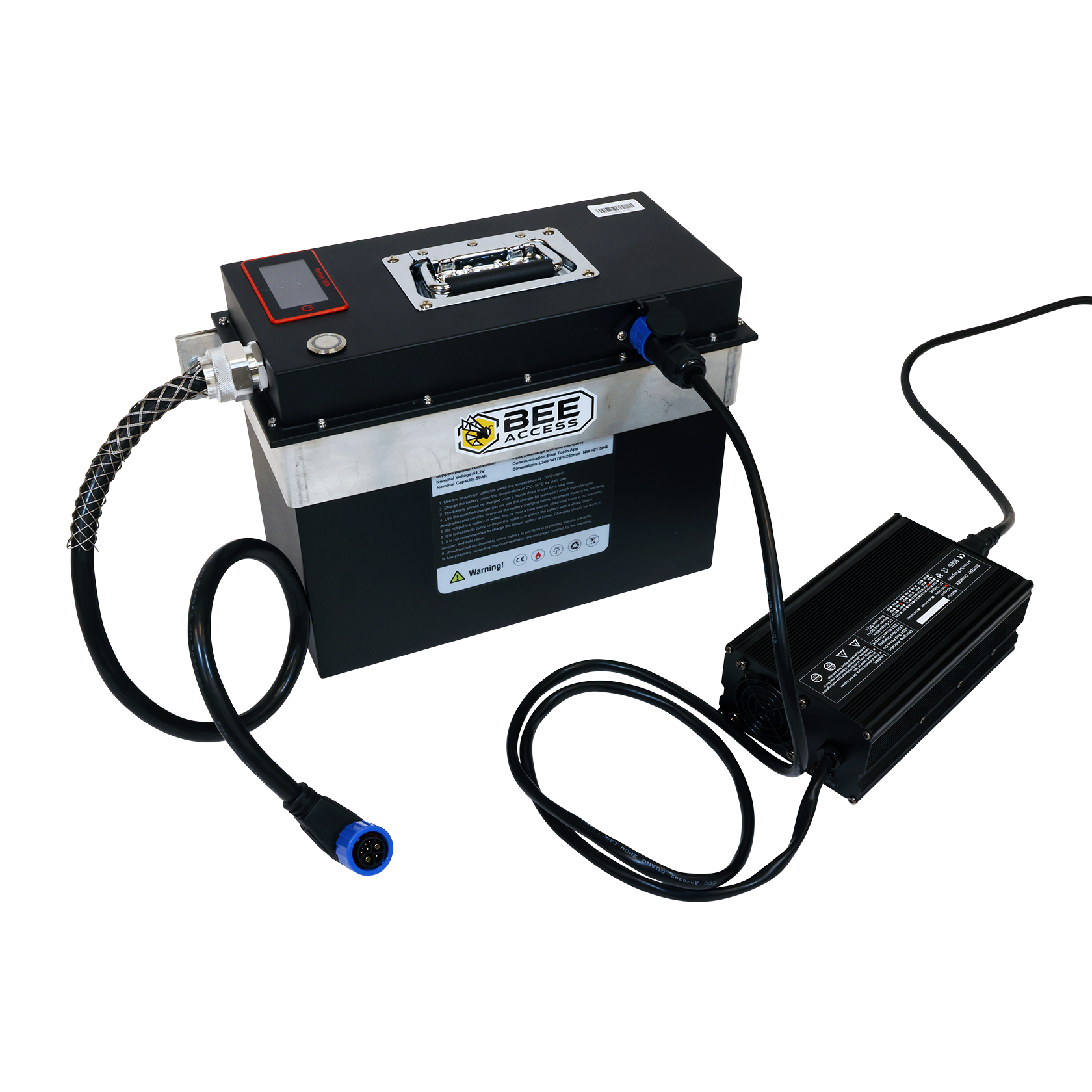

  Charger: 8.5″ x 4.75″ x 2.75″ w/ 58″ cords

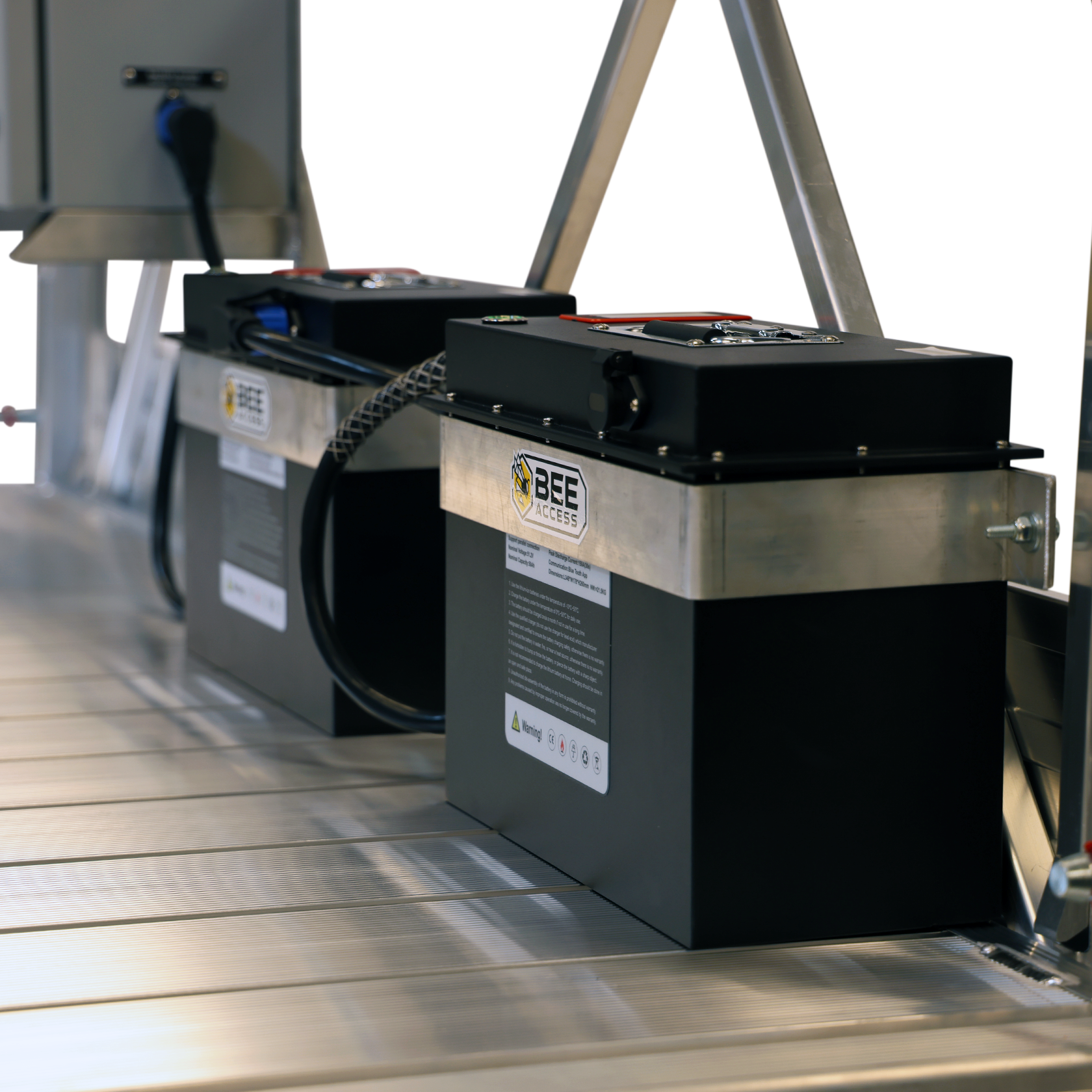

  Batteries: 13.75″ x 7″ x 10.5″ (13.75″H for 70Ah) w/ 33″ cord
• Individual Product Weights:
  Inverter: 75 lb
  Battery: 50 lb/50Ah, 65 lb/70Ah
• Total Kit Weights (for platforms & material hoists):
  1 Battery Kit: 125 lb (140 lb 70Ah) (Work Cage)
  2 Battery Kit: 175 lb (205 lb 70Ah) (Dual Hoist / MC 250)
• Battery Charge Time (from empty):
  220V Inverter Fast Charger: 2.5 hr (average)
  110V Stand Charger: 3 hr (average)
• Continuous Run Time: 2.5hr/50Ah & 3hr/70Ah (average)
