ALBA PHM Construction Hoist

The PMH is ideal for large and/or very tall buildings. With a maximum capacity of 7,100 lb it can lift up to 35 people at up to 260 ft/min travel speed, offering maximum productivity. It is available in several car sizes and has advanced technology with remote connection for management and diagnosis.

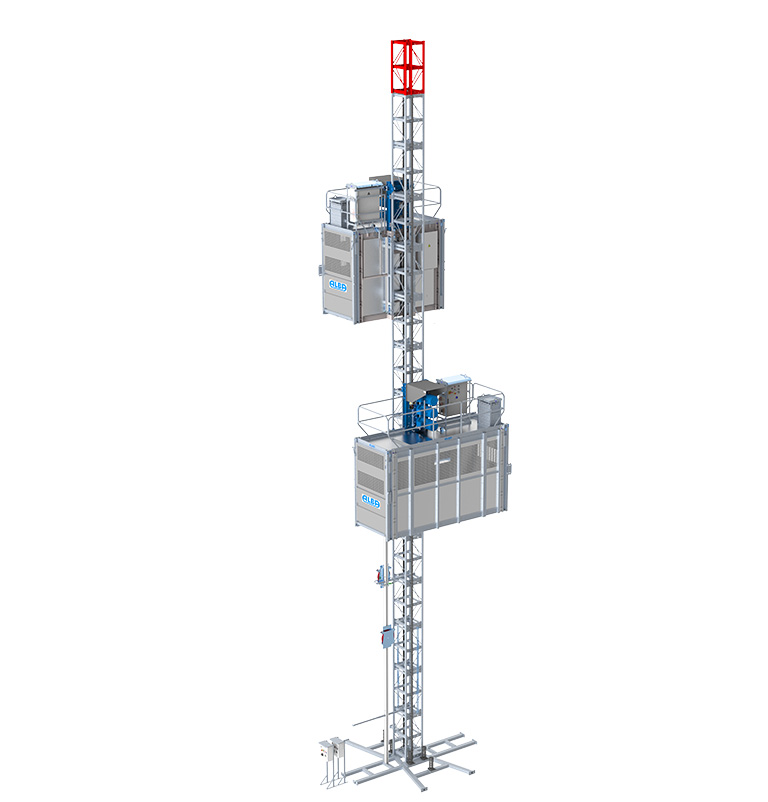

To double its capacity, an additional cabin can be installed on the same MC 650 square mast, which was created specifically for this hoist and is compatible with other brands’ equipment.

Specifications

• Max. load capacity: 7,000 lb (3200 kg)
• Max. speed: 260 ft/min (80 m/min)
• Max. height: 1,150 ft (350 m) inquire about greater heights
• Cabin dimensions: 14’ 8” x 5’ x 7’ 9” (4500 x 1550 x 2400 mm)

ALBA Telematics

A real-time remote control system that lets you monitor and control construction hoists from anywhere. It provides instant access to operational data, maintenance alerts and location tracking—enhancing job site safety, streamlining fleet management, and improving overall efficiency.
