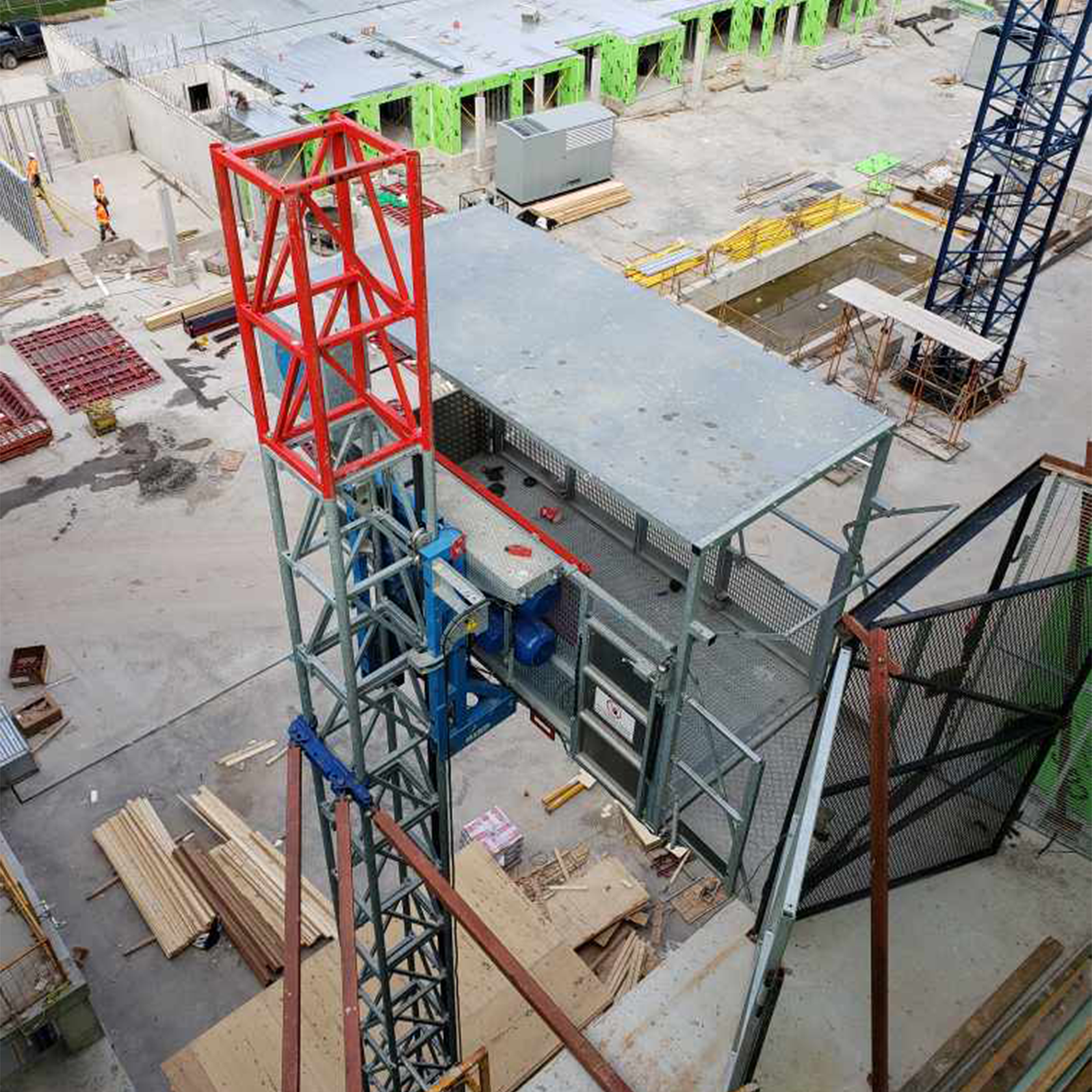

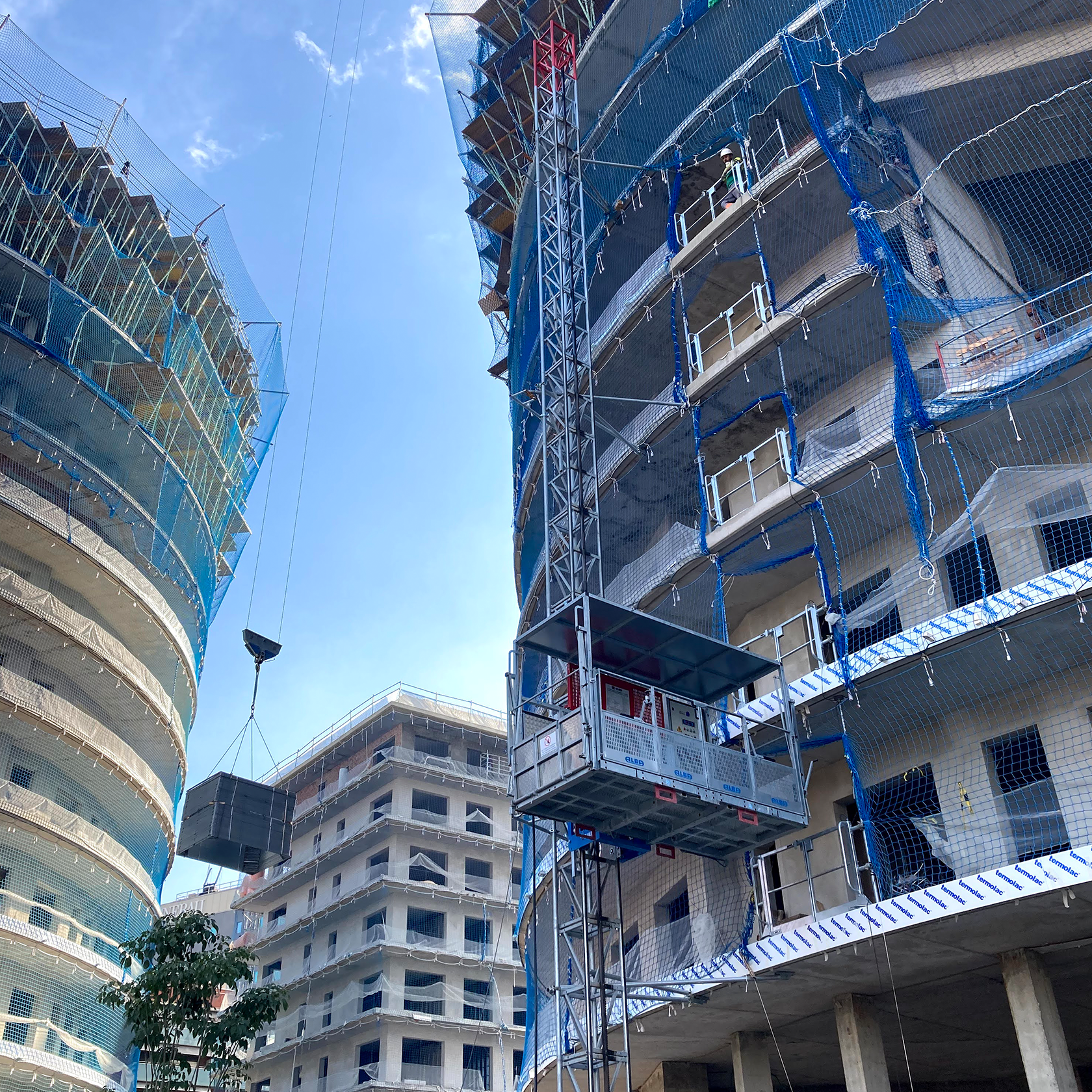

The PT 1800 model is ideal for large construction and restoration projects. This platform allows for the transportation of up to 20 personnel or 7 personnel with material and equipment; especially suited for lifting drywall. Thanks to the robust square mast, the PT 1800 can work together with the EDC 2000, MC 2000 and PEC 103/150 hoists at the same time.

• Overspeed parachute with auto-recovery system
• Galvanized steel construction with a non-slip cage floor is durable and stands up to rough handling
• Hoist controls with LED display
• Possibility of incorporating a third loading door
• Soft start and stop is gentle on materials and personnel
• Industry-leading safety features, such as: Upper and lower limit switches, Overspeed safety device, Controlled descent device

Specifications

• Max. load capacity: 4000 lb (1800 kg)
• Max. speed: 72 ft/min (22 m/min)
• Max. height: 820 ft (250 m) (inquire about greater heights)
• Cabin dimensions: 130 in x 55 in x 82 in (3.3 m x 1.4 m x 2.1 m)
• Mast section: Square Mast (Length: 59” (1.5 m) Weight: 1 Rack: 216 lb (98 kg) 2 Rack: 260 lb (118 kg)
• Mast section compatibility: Mast Climber: PEC 130 & 150 | Material Hoist: MC 2000 | Construction Hoist: EDC 2000 | Transport Platform: PT 3800
